7. SPARTA

Note

The documentation herein needs to be updated for current performance.

This is the documentation for the benchmark [SPARTA]. The content herein was created by the following authors (in alphabetical order).

This material is based upon work supported by the Sandia National Laboratories (SNL), a multimission laboratory managed and operated by National Technology and Engineering Solutions of Sandia under the U.S. Department of Energy’s National Nuclear Security Administration under contract DE-NA0003525. Content herein considered unclassified with unlimited distribution under SAND2023-01070O.

7.1. Purpose

Heavily pulled from their [site]:

SPARTA is an acronym for Stochastic PArallel Rarefied-gas Time-accurate Analyzer. SPARTA is a parallel Direct Simulation Monte Carlo (DSMC) code for performing simulations of low-density gases in 2d or 3d. Particles advect through a hierarchical Cartesian grid that overlays the simulation box. The grid is used to group particles by grid cell for purposes of performing collisions and chemistry. Physical objects with triangulated surfaces can be embedded in the grid, creating cut and split grid cells. The grid is also used to efficiently find particle/surface collisions. SPARTA runs on single processors or in parallel using message-passing techniques and a spatial-decomposition of the simulation domain. The code is designed to be easy to modify or extend with new functionality. Running SPARTA and the input command syntax is very similar to the LAMMPS molecular dynamics code (but SPARTA and LAMMPS use different underlying algorithms).

7.2. Characteristics

The goal is to utilize the specified version of SPARTA (see Application Version) that runs the benchmark problem (see Problem) correctly (see Correctness if changes are made to SPARTA).

7.2.1. Application Version

The command to clone is provided below.

git clone git@github.com:sparta/sparta.git
cd sparta
git checkout 478143bcc766083a100480a0a6e8a0c42c85e7e4

Note

The Git SHA will be updated with a tag soon.

The script to clone can be downloaded from sparta_clone.sh. It can also be executed in place to clone into docs/31_sparta/sparta.

cd docs/31_sparta
./sparta_clone.sh

7.2.2. Problem

This problem models 2D hypersonic flow of nitrogen over a circle with periodic boundary conditions in the z dimension, which physically translates to 3D flow over a cylinder of infinite length. Particles are continuously emitted from the 4 faces of the simulation box during the simulation, bounce off the circle, and then exit. The hierarchical cartesian grid is statically adapted to 6 levels around the circle. The memory array used to hold particles is reordered by grid cell every 100 timesteps to improve data locality and cache access patterns.

This problem is mostly present within the upstream SPARTA repository. The components of this problem are listed below (paths given are within SPARTA repository). Each of these files will need to be copied into a run directory for the simulation.

examples/cylinder/in.cylinder: This is the default input file that controls the simulation. Some parameters within this file may need to be changed depending upon what is being run (i.e., these parameters control how long this simulation runs for and how much memory it uses). The modified version of this within the template directory should be preferred; more on this below.
examples/cylinder/circle_R0.5_P10000.surf: This is the mesh file and will remain unchanged.
examples/cylinder/air.*: These three files (i.e., air.species, air.tce, and air.vss) contain the composition and reactions inherent with the air. These files, like the mesh file, are not to be edited.

A template run directory was created to help ease performing a simulation; this directory is templatedir. There are some key files within it.

templatedir/in.cylinder: This is a modified version of the input file with some key parameters changed to be more appropriate as a benchmark.
templatedir/sparta_ln.sh: This file creates symbolic links to files and folders needed for the simulation.
templatedir/sparta_batch_elcapitan.sh: This is a batch script compatible with El Capitan. It has capabilities for setting key job parameters from the command line; more on that below.

An excerpt from this input file that has its key parameters is provided below.

<snip>
###################################
# Trajectory inputs
###################################
<snip>
variable            L index 1.
<snip>
###################################
# Simulation initialization standards
###################################
variable            ppc equal 47
<snip>
#####################################
# Gas/Collision Model Specification #
#####################################
<snip>
collide_modify      vremax 100 yes vibrate no rotate smooth nearcp yes 10
<snip>
###################################
# Output
###################################
<snip>
stats               100
<snip>
# Some systems buffer extensively
stats_modify        flush yes
<snip>
# Stop after 11 minutes
fix 1 halt 10 tlimit > 660.0 message no
<snip>
# Print out the value of L for parsing ease
print "The value of L is $L"
<snip>
run                 10000000

These parameters are described below.

L: This corresponds to the length scale factor. This will scale the x and y dimensions of the problem, e.g., a doubling of this parameter will result in a domain that is 4x larger. This is used to weak scale a problem, e.g., setting this to 32 would be sufficient to weak scale a single-node problem onto 1,024 nodes.
ppc: This sets the particles per cell variable. This variable controls the size of the problem and, accordingly, the amount of memory it uses. Adjust this if the initial memory size is too high and a value of L would need to be less than 1.0.
collide_modify: The official documentation for this value is here. This resets the number of collisions and attempts to enable consistent work for each time step.
stats: This sets the interval at which the output required to compute the Figure of Merit is generated. In general, it is good to select a value that will produce approx. 20 entries between the time range of interest. If it produces too much data, then it may slow down the simulaton. If it produces too little, then it may adversely impact the FOM calculations.
stats_modify flush yes: This enables the log output to buffer continuously on El Capitan.
fix 1 halt 10 tlimit > 660.0 message no: This sets job termination to 660.0 seconds of wall time by checking on progress every 10 steps.
print "The value of L is $L": This line outputs the value of L in a way that is easy to parse since it can be set external to the input file.
run: This sets how many iterations it will run for, which also controls the wall time required for termination. If the fix 1 halt ... is used, then set this to a large number so it allows the halt to stop at the appropriate time.

This problem exhibits different runtime characteristics whether or not Kokkos is enabled. Specifically, there is some work that is performed within Kokkos that helps to keep this problem as well behaved from a throughput perspective as possible. Ergo, Kokkos must be enabled for the simulations regardless of the hardware being used (the cases herein have configurations that enable it for reference). If Kokkos is enabled, the following excerpts should be found within the log file.

SPARTA (dd mmm yyyy)
KOKKOS mode is enabled (/path/to/kokkos.cpp:40)
  requested 1 GPU(s) per node
  requested 1 thread(s) per MPI task
Running on 4 MPI task(s)
package kokkos

7.2.3. Figure of Merit

Each SPARTA simulation writes out a file named “log.sparta”. At the end of this simulation is a block that resembles the following example.

    Step          CPU         Np     Natt    Ncoll Maxlevel
       0            0 1342895588        0        0        3
  55.100981 1342896690 30660997 24422279        3
  108.04593 1342894859 30715618 24465908        3
  162.82546 1342894246 30765809 24505854        3
  217.92144 1342895598 30812328 24539812        3
  274.18419 1342897827 30854579 24573110        3
  330.94615 1342897254 30902088 24612675        3
  387.95385 1342893864 30939073 24640919        3
  445.66487 1342885429 30978764 24674696        3
  505.13571 1342886863 31014395 24701985        3
  564.62459 1342883798 31050409 24731144        3
  624.14498 1342885848 31083875 24756941        3
  683.65841 1342884461 31116135 24780002        3
Loop time of 683.659 on 4 procs for 1200 steps with 1342884461 particles

The quantity of interest (QOI) is “Mega particle steps per second,” which can be computed from the above table by multiplying the third column (no. of particles) by the first (no. of steps), dividing the result by the second column (elapsed time in seconds), and finally dividing by 1,000,000 (normalize). The number of steps must be large enough so the times mentioned in the second column exceed 600 (i.e., so it runs for at least 10 minutes).

The Figure of Merit (FOM) is the harmonic mean of the QOI computed from the times between 300 and 600 seconds and then divided by the number of nodes, i.e., “Mega particle steps per second per node.” A Python script (sparta_fom.py) is included within the repository to aid in computing this quantity. Pass it the -h command line argument to view its help page for additional information.

It is desired to capture the FOM for varying problem sizes that encompass utilizing 35% to 75% of available memory (when all PEs are utilized). The ultimate goal is to maximize this throughput FOM while utilizing at least 50% of available memory.

7.2.4. Correctness

The aforementioned relevant block of output within “log.sparta” is replicated below.

    Step          CPU         Np     Natt    Ncoll Maxlevel
       0            0 1342895588        0        0        3
  55.100981 1342896690 30660997 24422279        3
  108.04593 1342894859 30715618 24465908        3
  162.82546 1342894246 30765809 24505854        3
  217.92144 1342895598 30812328 24539812        3
  274.18419 1342897827 30854579 24573110        3
  330.94615 1342897254 30902088 24612675        3
  387.95385 1342893864 30939073 24640919        3
  445.66487 1342885429 30978764 24674696        3
  505.13571 1342886863 31014395 24701985        3
  564.62459 1342883798 31050409 24731144        3
  624.14498 1342885848 31083875 24756941        3
  683.65841 1342884461 31116135 24780002        3
Loop time of 683.659 on 4 procs for 1200 steps with 1342884461 particles

There are several columns of interest regarding correctness; these are listed below.

Step: This is the step number and is the first column.
CPU: This is the elapsed time and is the second column.
Np: This is the number of particles and is the third column.
Natt: This is the number of attempts and is the fourth column.
Ncoll: This is the number of collisions and is the fifth column.

Assessing the correctness will involve comparing these quantities across modified (henceforth denoted with “mod” subscript) and unmodified (“unmod” subscript) SPARTA subject to the methodology below.

The first step is to adjust the run input file parameter so that SPARTA_mod has CPU output that exceeds 600 seconds (per Figure of Merit). Also, adjust the stats parameter to a value of 1 so fine-grained output is generated; if this is significantly slowing down computation, then it can be increased to a value of 10. Then, produce output from SPARTA_unmod with the same run and stats settings.

Note

The example above is generating output every 100 time steps, which is also what the value of collide_modify is set to. This has the side effect of having low attempt and collision values since it is outputting on the reset step. The final value shown at a time step of 4,346 has values that are more inline with the actual problem. This is why output, for this correctness step, needs to occur at each time step.

The second step is to compute the absolute differences between modified and unmodified SPARTA for Np, Natt, and Ncoll for each row, i, whose Step is relevant for the FOM for SPARTA_mod,

\[\begin{split}\Delta \texttt{Np}_i &= | \texttt{Np}_{\textrm{mod},i}-\texttt{Np}_{\textrm{unmod},i} | \\ \Delta \texttt{Natt}_i &= | \texttt{Natt}_{\textrm{mod},i}-\texttt{Natt}_{\textrm{unmod},i} | \\ \Delta \texttt{Ncoll}_i &= | \texttt{Ncoll}_{\textrm{mod},i}-\texttt{Ncoll}_{\textrm{unmod},i} |\end{split}\]

where

i is each line whose CPU time is between 300 and 600 seconds for SPARTA_mod

The third step is to compute the arithmetic mean of each of the aforementioned quantities over the n rows,

\[\begin{split}\mu _{\Delta \texttt{Np}} &= \frac{\sum_{i} \Delta \texttt{Np}_i}{n} \\ \mu _{\Delta \texttt{Natt}} &= \frac{\sum_{i} \Delta \texttt{Natt}_i}{n} \\ \mu _{\Delta \texttt{Ncoll}} &= \frac{\sum_{i} \Delta \texttt{Ncoll}_i}{n}\end{split}\]

where

\[n = \sum_{i} 1\]

The fourth step is to compute the arithmetic mean of the n matching rows of the unmodified SPARTA,

\[\begin{split}\mu _{\texttt{Np},\textrm{unmod}} &= \frac{\sum_{i} \texttt{Np}_{\textrm{unmod},i}}{n} \\ \mu _{\texttt{Natt},\textrm{unmod}} &= \frac{\sum_{i} \texttt{Natt}_{\textrm{unmod},i}}{n} \\ \mu _{\texttt{Ncoll},\textrm{unmod}} &= \frac{\sum_{i} \texttt{Ncoll}_{\textrm{unmod},i}}{n}\end{split}\]

The fifth step is to normalize the differences with the baseline values to create the error ratios,

\[\begin{split}\varepsilon _{\texttt{Np}} &= \frac{\mu _{\Delta \texttt{Np}}}{\mu _{\texttt{Np},\textrm{unmod}}} \\ \varepsilon _{\texttt{Natt}} &= \frac{\mu _{\Delta \texttt{Natt}}}{\mu _{\texttt{Natt},\textrm{unmod}}} \\ \varepsilon _{\texttt{Ncoll}} &= \frac{\mu _{\Delta \texttt{Ncoll}}}{\mu _{\texttt{Ncoll},\textrm{unmod}}}\end{split}\]

The sixth and final step is to check over all of the error ratios and if any of them exceed 25%, then the modifications are not approved without discussing them with this benchmark’s authors. This is the same criteria that SPARTA uses for its own testing. The success criteria are:

\[\begin{split}\varepsilon _{\texttt{Np}} &\le 25\% \\ \varepsilon _{\texttt{Natt}} &\le 25\% \\ \varepsilon _{\texttt{Ncoll}} &\le 25\%\end{split}\]

7.3. System Information

The platforms utilized for benchmarking activities are listed and described below.

Advanced Technology System 4 (ATS-4), also known as El Capitan (see El Capitan)

7.4. Building

A script (sparta_clone.sh) is provided to clone the SPARTA repository within the “sparta” folder. Instructions are provided on how to build SPARTA for the following systems:

Generic (see Generic)
Advanced Technology System 4 (ATS-4), also known as El Capitan (see El Capitan)

7.4.1. Generic

Refer to SPARTA’s [sparta-build] documentation for generic instructions.

7.4.2. El Capitan

Instructions for building on El Capitan are provided below. These instructions assume this repository has been cloned and that the current working directory is at the top level of this repository.

cd docs/31_sparta
./sparta_build_elcapitan.sh

The script discussed above is sparta_build_elcapitan.sh and is produced below for convenience and reference.

#!/usr/bin/env bash

# set top-level script parameters
umask 022
set -e
set -x

# create vars for common directories and files
dir_root="`git rev-parse --show-toplevel`"
dir_pwd="` pwd -P `"
dir_src="${dir_pwd}/sparta"
dir_build="${dir_pwd}/sparta/_build"
file_log="${dir_pwd}/sparta_build.log"

# redirect STDOUT and STDERR through tee
exec &> >(tee >(ts '[%Y-%m-%d %H:%M:%S]' > "${file_log}"))

# let's turn on verbosity now
set -v

# output for posterity
hostname
uptime
lscpu

# clean and reset source
pushd "${dir_src}"
git clean -fdx
git reset --hard
popd

# create build directory
test -d "${dir_build}" && rm -rf "${dir_build}"
mkdir -p "${dir_build}"

# build
#   list current environment
module list
#   alter environment
. sparta_env_elcapitan.sh
#   list current environment
module list
pushd "${dir_build}"
cmake \
    -C ../cmake/presets/elcapitan_kokkos.cmake \
    -DPKG_FFT=on \
    -DBUILD_MPI=on \
    ../cmake
/usr/bin/time --verbose -- \
    nice -n 1 \
        gmake -j 64
popd

# gracefully exit
exit 0

7.5. Running

Instructions are provided on how to run SPARTA for the following systems:

Advanced Technology System 4 (ATS-4), also known as El Capitan (see El Capitan) * Profiling with Kokkos Tools on El Capitan (see

SPARTAProfileKokkosToolsElCapitan)

7.5.1. El Capitan

Note

This section will be updated with some more content soon.

An example for performing simulations on El Capitan is provided below.

# first, copy templatedir into something useful
cp -a templatedir useful

# next, go into the run folder
cd useful

# submit job and set parameters on command line if desired
#   this example sets L (aka sparta_len) to 2.5
#   this example turns on Kokkos Tools profiling (aka kokkos_tools)
#   this example runs on 1 node (aka --nodes=1)
sparta_len=2.5 is_kokkos_tools=1 flux batch --nodes=1 sparta_batch_elcapitan.s

7.5.1.1. Profiling with Kokkos Tools

Scripts are provided to clone and build Kokkos Tools. The steps to do both are provided below.

# go into the SPARTA documentation folder
cd docs/31_sparta

# clone Kokkos Tools
./kokkos_tools_clone.sh

# build Kokkos Tools' Space Time
./kokkos_tools_build_elcapitan.sh

Once built, the command line variable is_kokkos_tools can be set to 1 for the batch script to turn it on. After a successful run, it will output additional memory information. An example of this (for L equal to 2.0 and ppc equal to 47) on El Capitan is provided below that shows approximately 82.2 GB of memory allocated on each GPU.

KOKKOS HIP SPACE:
===================
MAX MEMORY ALLOCATED: 82222221.9 kB

7.6. Verification of Results

Additional information:

The sub-section Compute Figure of Merit describes how to compute the FOM

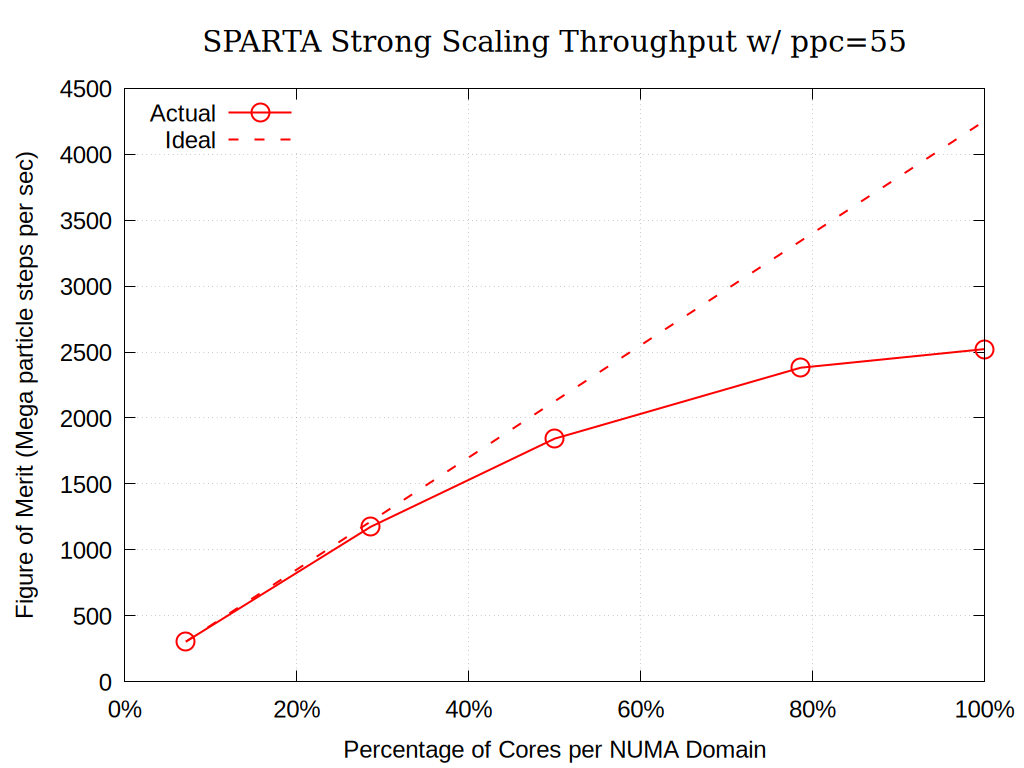

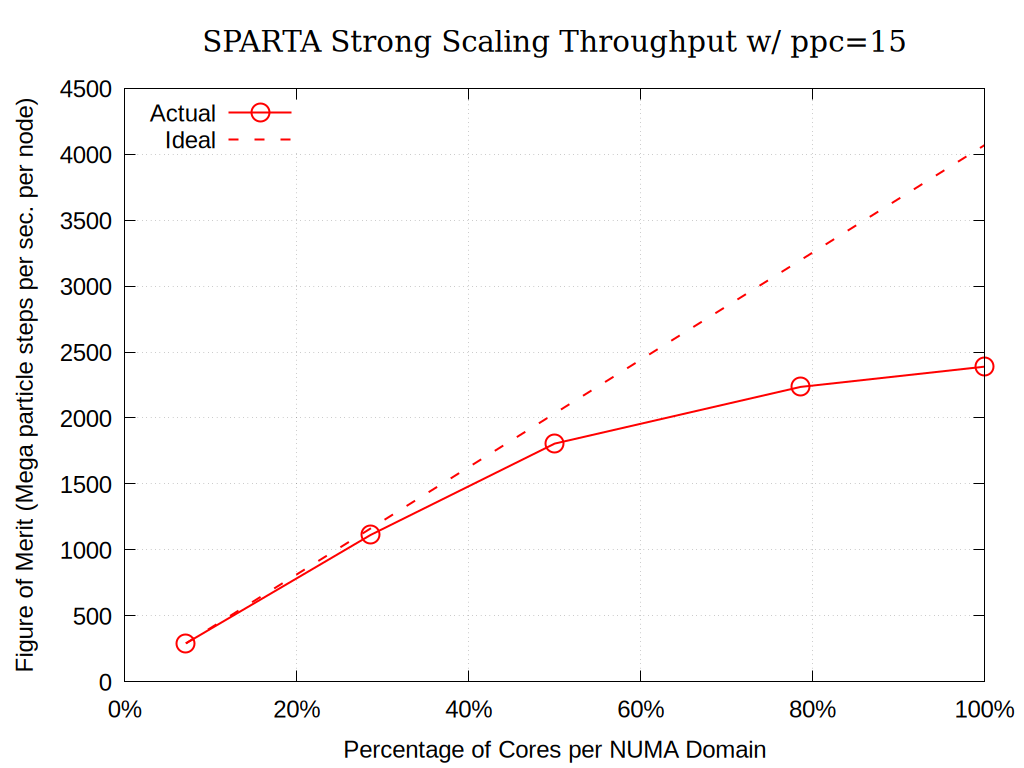

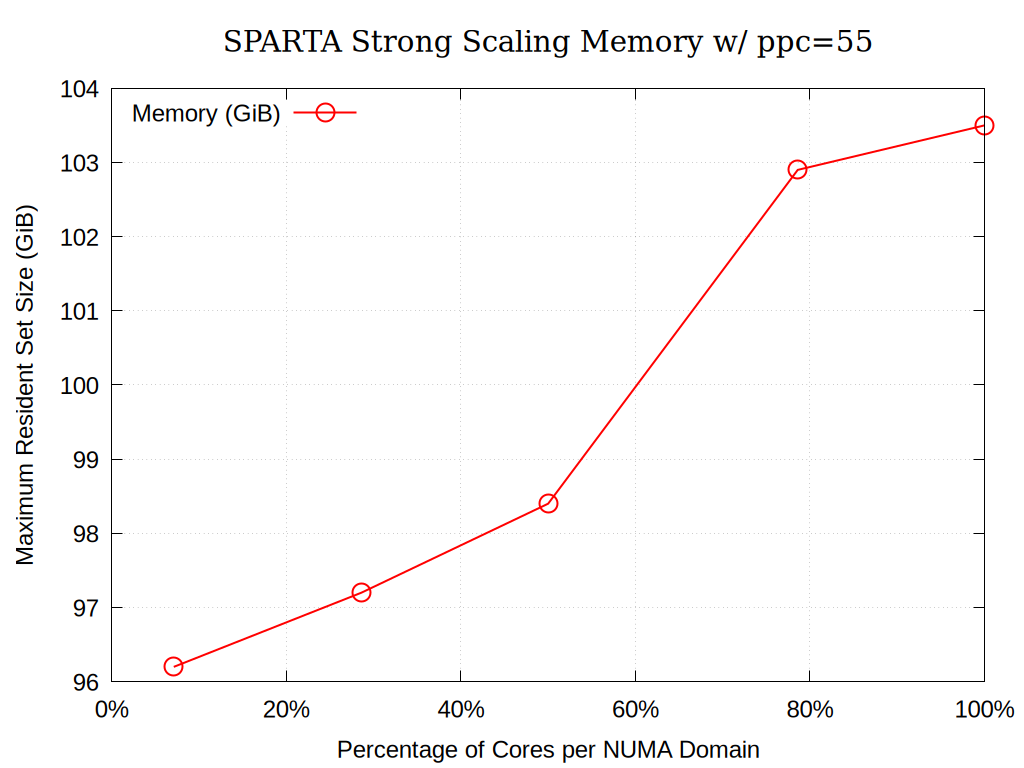

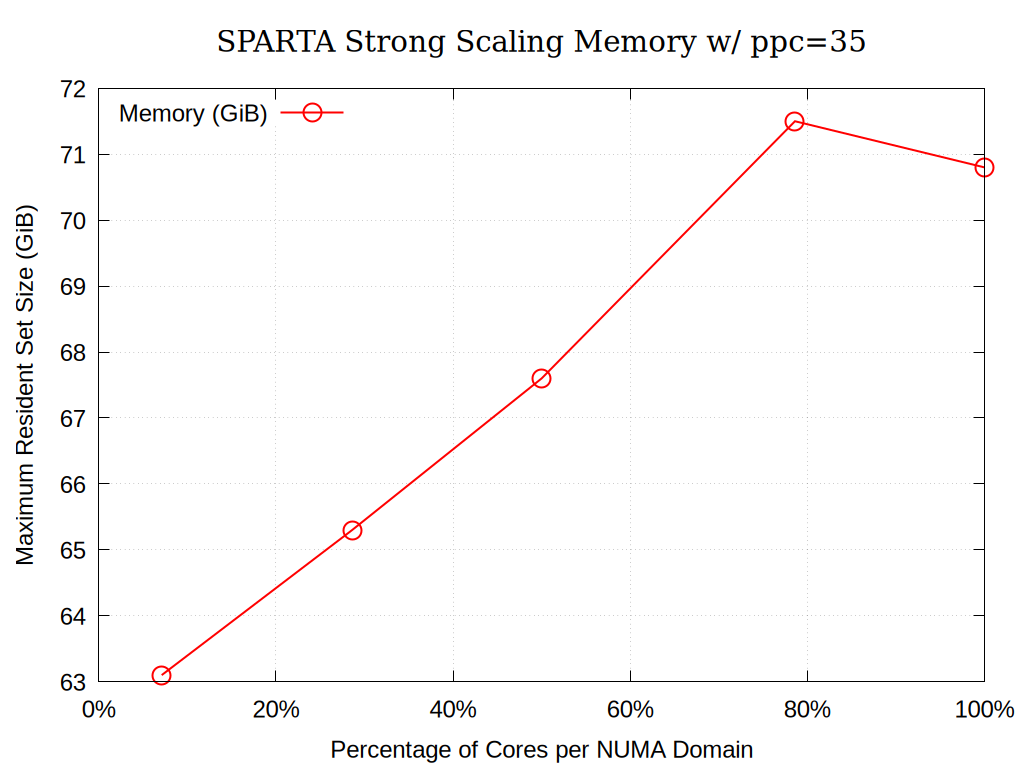

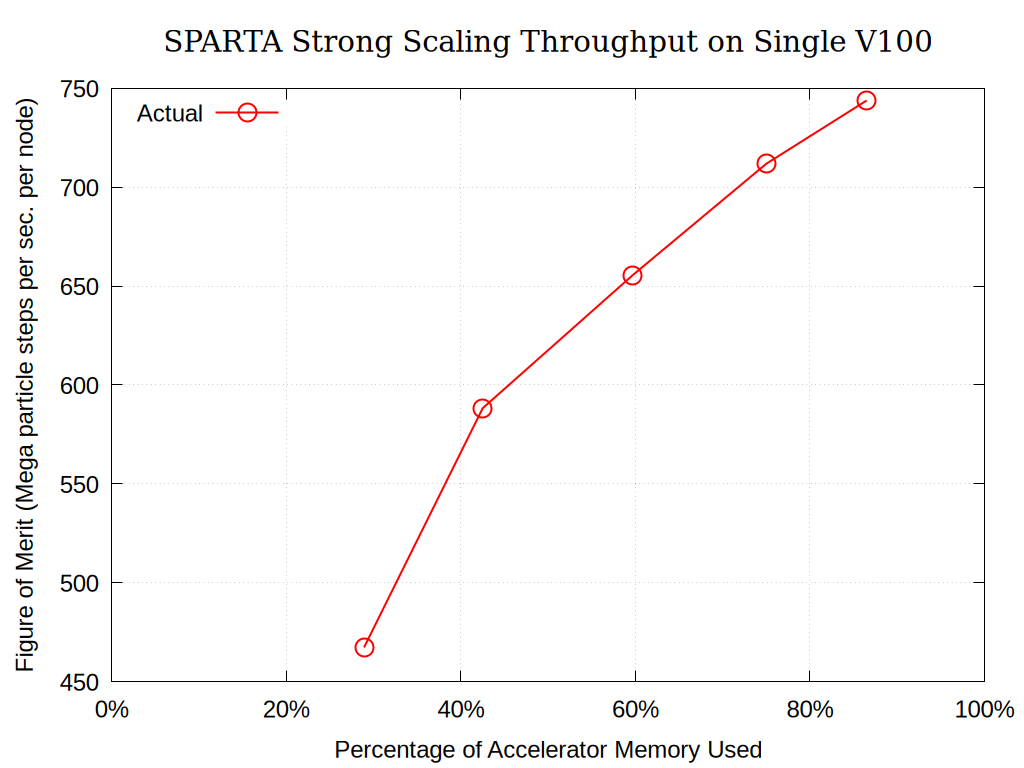

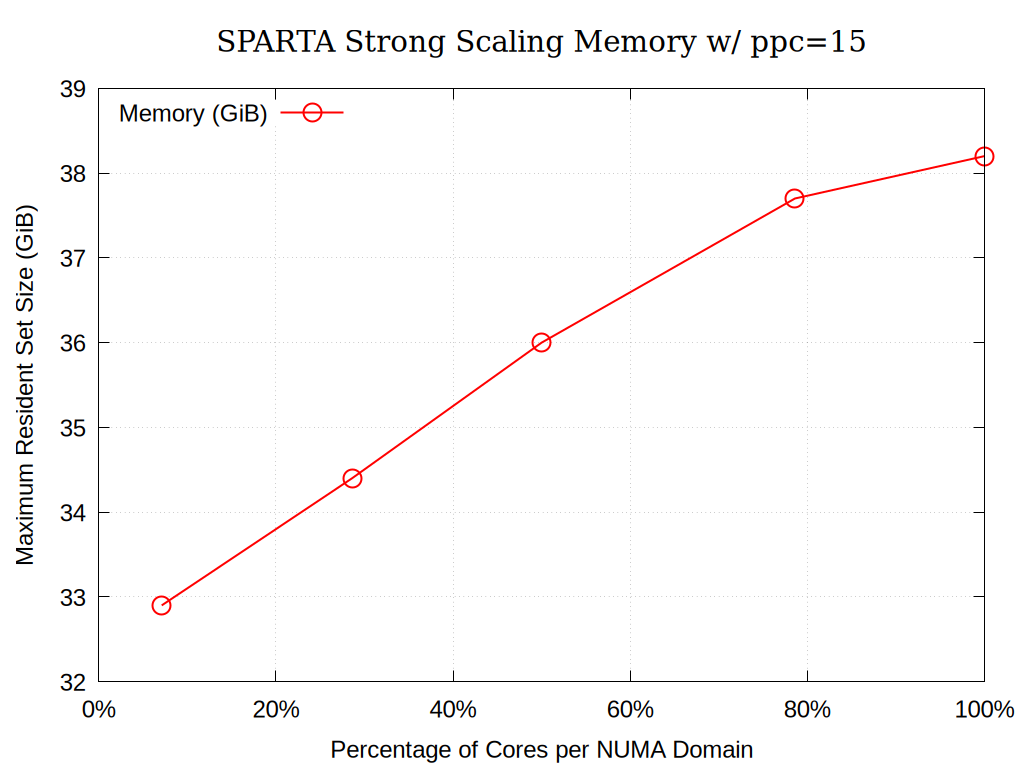

Single-node results from SPARTA are provided on the following systems:

Advanced Technology System 4 (ATS-4), also known as El Capitan (see El Capitan - Single Node)

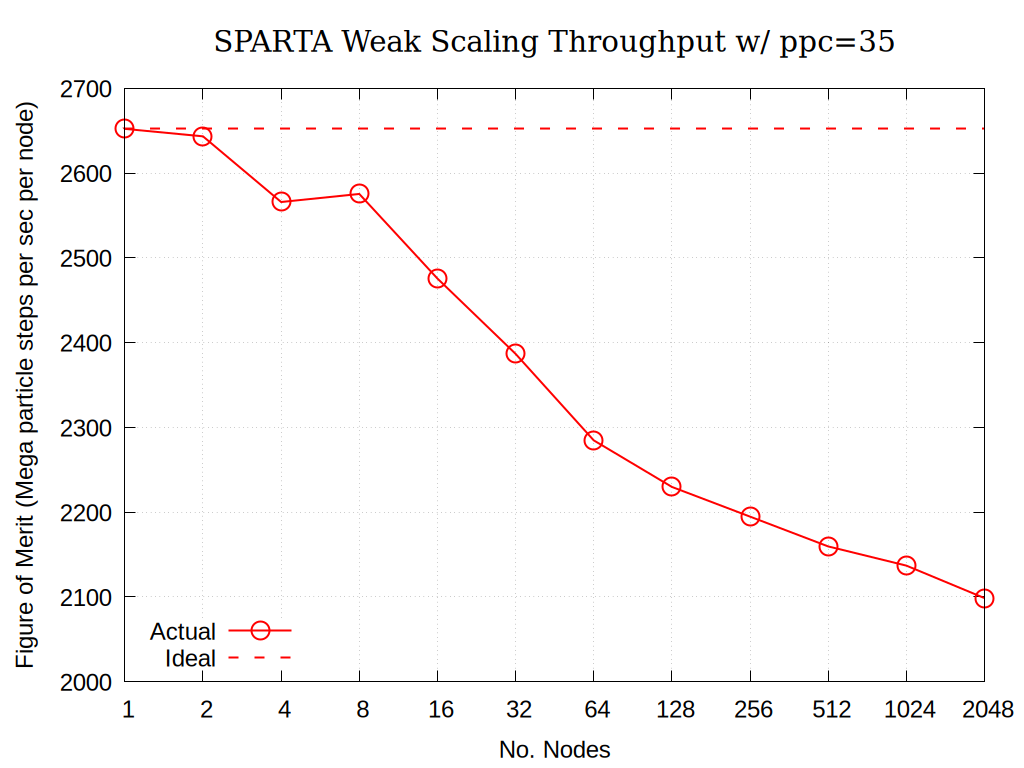

Multi-node results from SPARTA are provided on the following system(s):

Advanced Technology System 4 (ATS-4), also known as El Capitan (see El Capitan - Many Nodes)

7.6.1. Compute Figure of Merit

A script (sparta_fom.py) is provided to compute the figure of merit (FOM). A single-node example of it is below on El Capitan showcasing 2,408 Mega particle steps per second per node. Its default values are to always run --all, to set 4 MPI ranks per node, and to look for a file named “log.sparta” meaning the arguments in the example were unnecessary.

$ ./sparta_fom.py --all --numRanksPerNode 4 --file log.sparta
INFO - 2026-02-16 20:54:44,673 - FOM (M-particle-steps/sec/node) = 2407.678218234091
INFO - 2026-02-16 20:54:44,673 - No. Ranks = 4
INFO - 2026-02-16 20:54:44,673 - No. Nodes = 1
INFO - 2026-02-16 20:54:44,673 - Wall Time (sec) = 683.659
INFO - 2026-02-16 20:54:44,673 - No. Steps = 1200
INFO - 2026-02-16 20:54:44,673 - No. Particles = 1342884461
INFO - 2026-02-16 20:54:44,673 - Particles Per Cell [PPC] = 47
INFO - 2026-02-16 20:54:44,673 - Length Scaling Factor [L] = 2.0
INFO - 2026-02-16 20:54:44,673 - File = /path/to/llnl-benchmarks/docs/31_sparta/checks-10--nodes-001--L-2.0--ktst/log.sparta

7.6.2. El Capitan - Single Node

Note

This section will be updated with some more content soon.

A single-node example is below that showcases 2,408 Mega particle steps per second per node. The other relevant parameters are displayed as part of the output.

$ ./sparta_fom.py --all --numRanksPerNode 4 --file log.sparta
INFO - 2026-02-16 20:54:44,673 - FOM (M-particle-steps/sec/node) = 2407.678218234091
INFO - 2026-02-16 20:54:44,673 - No. Ranks = 4
INFO - 2026-02-16 20:54:44,673 - No. Nodes = 1
INFO - 2026-02-16 20:54:44,673 - Wall Time (sec) = 683.659
INFO - 2026-02-16 20:54:44,673 - No. Steps = 1200
INFO - 2026-02-16 20:54:44,673 - No. Particles = 1342884461
INFO - 2026-02-16 20:54:44,673 - Particles Per Cell [PPC] = 47
INFO - 2026-02-16 20:54:44,673 - Length Scaling Factor [L] = 2.0
INFO - 2026-02-16 20:54:44,673 - File = /path/to/llnl-benchmarks/docs/31_sparta/checks-10--nodes-001--L-2.0--ktst/log.sparta

7.6.3. El Capitan - Many Nodes

Note

This section will be updated with some more content soon.

7.6.3.1. Timing Breakdown

Note

This section will be updated with some more content soon.

Timing breakdown information directly from SPARTA on El Capitan is provided for various node counts. SPARTA writes out a timer block that resembles the following.

Section |  min time  |  avg time  |  max time  |%varavg| %total
---------------------------------------------------------------
Move    | 159.2      | 161.74     | 165.21     |  18.7 | 23.66
Coll    | 186.02     | 325.5      | 476.79     | 771.3 | 47.61
Sort    | 26.944     | 29.01      | 31.18      |  35.9 |  4.24
Comm    | 1.7542     | 1.762      | 1.7726     |   0.5 |  0.26
Modify  | 2.502      | 2.9416     | 3.3764     |  24.7 |  0.43
Output  | 0.049965   | 1.7761     | 3.441      | 124.6 |  0.26
Other   |            | 160.9      |            |       | 23.54

A description of the work performed for each of the sections is provided below.

Move: Particle advection through the mesh, i.e., particle push
Coll: Particle collisions
Sort: Particle sorting (i.e., make a list of all particles in each grid cell) and reorder (i.e., reorder the particle array by grid cell)
Comm: The bulk of the MPI communications
Modify: Time spent in diagnostics like “fixes” or “computes”
Output: Time spent writing statistical output to log, or other, file(s)
Other: Leftover time not captured by the categories above; this can include load imbalance (i.e., ranks waiting at a collective operation)

7.7. References

[SPARTA]

S. J. Plimpton and S. G. Moore and A. Borner and A. K. Stagg and T. P. Koehler and J. R. Torczynski and M. A. Gallis, ‘Direct Simulation Monte Carlo on petaflop supercomputers and beyond’, 2019, Physics of Fluids, 31, 086101.

[site]

M. Gallis and S. Plimpton and S. Moore, ‘SPARTA Direct Simulation Monte Carlo Simulator’, 2023. [Online]. Available: https://sparta.github.io. [Accessed: 22- Feb- 2023]

[sparta-build]

M. Gallis and S. Plimpton and S. Moore, ‘SPARTA Documentation Getting Started’, 2023. [Online]. Available: https://sparta.github.io/doc/Section_start.html#start_2. [Accessed: 26- Mar- 2023]
