Testing Your Contribution

Through GitHub CI

Slide Preview

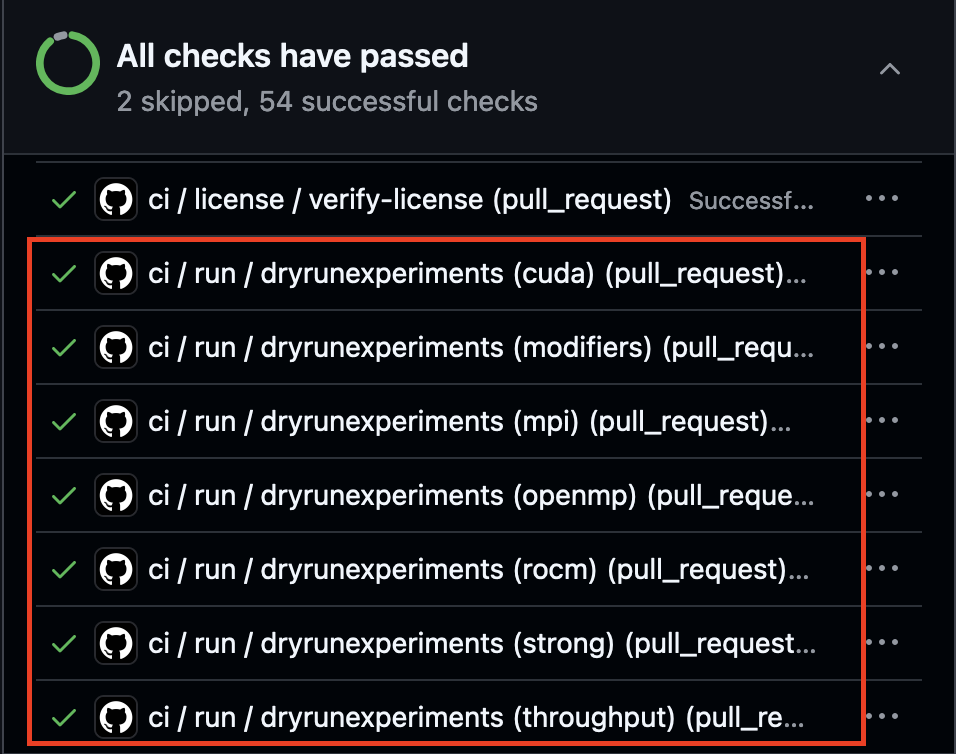

Fig. 1: Example Dryruns

Upon creating a pull request on Benchpark, unit tests will automatically be generated for your experiment/system/modifier/application. A member of the Benchpark repository will need to approve the tests to run if you are a first time contributor. If you are contributing to benchpark you must check that your contribution is passing the dryrun tests before your pull request will be merged. These tests are indicated by the GitHub ci/run/dryrunexperiments (Figure 1) tests in the pull request.

Dry run tests do not build your benchmark or run your experiments, they do:

  1. Verify that your experiment/system is able to be initialized based on the programming models and scaling types you have included in your experiment class.

  2. Verify that you have defined the necessary experiment variables for benchpark and ramble to generate your experiment.

  1. If adding an experiment:

  1. Your experiment will be tested for each system that supports those programming models and for each scaling type that your experiment inherits.

  1. If adding a system:

  1. Your system will be tested for each experiment in benchpark that is able to run for the programming models in self.programming_models.

If all of the dryrunexperiments tests pass, your experiment/system has been successfully tested.

Manually Testing

You can manually test a system, experiment, or application using the following steps (use an existing system/experiment/application to test against):

Note

Spack package.py packages and Ramble application.py applications can be tested independently from Benchpark (see Spack Package Creation Tutorial and Ramble Usage While Developing).

1. system.py - Test System Initialization:

This step will test the system.py you have created by attempting to create system configuration files from your system definition.

benchpark system init --dest=my-system my-system

2. experiment.py - Test Experiment Initialization:

This step requires an existing system and will test the experiment.py you have created by attempting to create an experiment configuration file ramble.yaml from your experiment definition. If you also created an application.py the experiment variables you defined in your experiment.py will be used by Ramble during the workspace setup step.

benchpark experiment init --dest=my-experiment --system=my-system my-experiment

3. Setup Benchpark Workspace:

The benchpark setup step does not directly test any of the components, and should complete as long as you have completed the prior steps.

benchpark setup ./my-experiment workspace/

4. application.py/ package.py - Test Application and Package:

Setting up a Ramble workspace will test your application.py and if successful, will attempt to build your application using *Spack. We recommend first testing your package.py separately using Spack. This step will also indirectly test your experiment.py and will fail if your application.py expects experiment variables that you did not define in your experiment.

*If using Spack as your Benchpark package manager

. workspace/setup.sh
ramble --workspace-dir workspace/my-experiment/my-system/workspace workspace setup

5. Test Your Benchmark

If built successfully, the ramble on command will submit your experiments (job scripts that ramble has generated) to the scheduler. Runtime errors at this point are likely source code issues.

ramble --workspace-dir workspace/my-experiment/my-system/workspace on
