#include "defs.hpp"
#include "oscillator.hpp"
#include "util.hpp"
#include <optional>
#include <petscts.h>
#include <vector>
#include <assert.h>
#include <iostream>
#include "gate.hpp"
#include "hamiltonianfilereader.hpp"

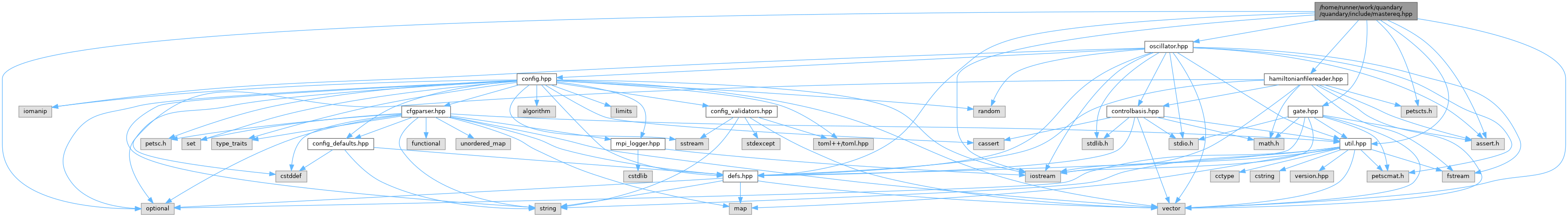

Include dependency graph for mastereq.hpp:

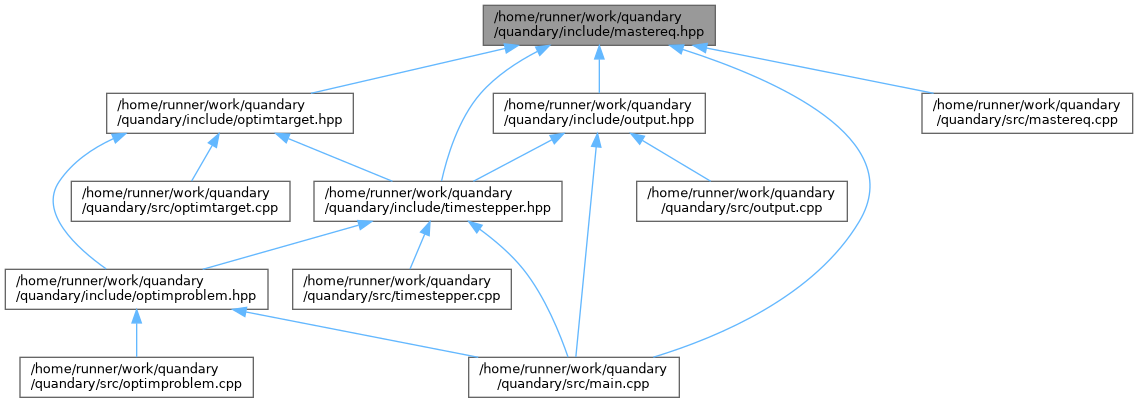

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	MatShellCtx
	Matrix shell context containing data needed for applying the right-hand-side (RHS) system matrix to a vector. More...

class	MasterEq
	Implementation of the real-valued right-hand-side (RHS) system matrix of the quantum dynamical equations. More...

Functions
int	applyRHS_matfree_1Osc (Mat RHS, Vec x, Vec y)
	Matrix-vector products to apply the RHS system matrix to a state vector.

int	applyRHS_matfree_transpose_1Osc (Mat RHS, Vec x, Vec y)
	Transpose matrix-free MatMult for 1 oscillator.

int	applyRHS_matfree_2Osc (Mat RHS, Vec x, Vec y)
	Matrix-free MatMult for 2 oscillators.

int	applyRHS_matfree_transpose_2Osc (Mat RHS, Vec x, Vec y)
	Transpose matrix-free MatMult for 2 oscillators.

int	applyRHS_matfree_3Osc (Mat RHS, Vec x, Vec y)
	Matrix-free MatMult for 3 oscillators.

int	applyRHS_matfree_transpose_3Osc (Mat RHS, Vec x, Vec y)
	Transpose matrix-free MatMult for 3 oscillators.

int	applyRHS_matfree_4Osc (Mat RHS, Vec x, Vec y)
	Matrix-free MatMult for 4 oscillators.

int	applyRHS_matfree_transpose_4Osc (Mat RHS, Vec x, Vec y)
	Transpose matrix-free MatMult for 4 oscillators.

int	applyRHS_matfree_5Osc (Mat RHS, Vec x, Vec y)
	Matrix-free MatMult for 5 oscillators.

int	applyRHS_matfree_transpose_5Osc (Mat RHS, Vec x, Vec y)
	Transpose matrix-free MatMult for 5 oscillators.

int	applyRHS_sparsemat (Mat RHS, Vec x, Vec y)
	Sparse matrix MatMult.

int	applyRHS_sparsemat_transpose (Mat RHS, Vec x, Vec y)
	Transpose sparse matrix MatMult.

void	compute_dRHS_dParams_sparsemat (const double t, const Vec x, const Vec x_bar, const double alpha, Vec grad, std::vector< size_t > &nlevels, IS isu, IS isv, std::vector< Mat > &Ac_vec, std::vector< Mat > &Bc_vec, Vec aux, Oscillator **oscil_vec)
	: Sparse-matrix version to compute gradient of RHS with respect to parameters

void	compute_dRHS_dParams_matfree (const PetscInt dim, const double t, const Vec x, const Vec x_bar, const double alpha, Vec grad, std::vector< size_t > &nlevels, DecoherenceType decoherence_type, Oscillator **oscil_vec)
	: Matrix free version to compute gradient of RHS with respect to parameters

double	H_detune (const double detuning0, const int a)
	Inline for Matrix-free RHS to Compute detuning for 1 oscillator.

double	H_selfkerr (const double xi0, const int a)
	Inline for Matrix-free RHS to Compute self-Kerr coefficient for 1 oscillator.

double	L2 (const double dephase0, const int i0, const int i0p)
	Inline for Matrix-free RHS to compute L2 dephasing coefficient for 1 oscillator.

double	L1diag (const double decay0, const int i0, const int i0p)
	Inline for Matrix-free RHS to compute L1 decay coefficient for 1 oscillator.

int	TensorGetIndex (const int nlevels0, const int i0, const int i0p)
	Inline for Matrix-free RHS to compute tensor product index for 1 oscillator system.

double	H_detune (const double detuning0, const double detuning1, const int a, const int b)
	Inline for Matrix-free RHS, Computes detuning Hamiltonian term for 2 oscillators.

double	H_selfkerr (const double xi0, const double xi1, const int a, const int b)
	Inline for Matrix-free RHS, Computes self-Kerr nonlinearity terms for 2 oscillators.

double	H_crosskerr (const double xi01, const int a, const int b)
	Inline for Matrix-free RHS, Computes cross-Kerr coupling between 2 oscillators.

double	L2 (const double dephase0, const double dephase1, const int i0, const int i1, const int i0p, const int i1p)
	Inline for Matrix-free RHS, Computes L2 dephasing Lindblad operator for 2 oscillators.

double	L1diag (const double decay0, const double decay1, const int i0, const int i1, const int i0p, const int i1p)
	Inline for Matrix-free RHS, Computes L1 decay Lindblad operator diagonal term for 2 oscillators.

int	TensorGetIndex (const int nlevels0, const int nlevels1, const int i0, const int i1, const int i0p, const int i1p)
	Inline for Matrix-free RHS, Computes tensor product index for 2 oscillator system.

double	H_detune (const double detuning0, const double detuning1, const double detuning2, const int i0, const int i1, const int i2)

double	H_selfkerr (const double xi0, const double xi1, const double xi2, const int i0, const int i1, const int i2)

double	H_crosskerr (const double xi01, const double xi02, const double xi12, const int i0, const int i1, const int i2)

double	L2 (const double dephase0, const double dephase1, const double dephase2, const int i0, const int i1, const int i2, const int i0p, const int i1p, const int i2p)

double	L1diag (const double decay0, const double decay1, const double decay2, const int i0, const int i1, const int i2, const int i0p, const int i1p, const int i2p)

int	TensorGetIndex (const int nlevels0, const int nlevels1, const int nlevels2, const int i0, const int i1, const int i2, const int i0p, const int i1p, const int i2p)

double	H_detune (const double detuning0, const double detuning1, const double detuning2, const double detuning3, const int i0, const int i1, const int i2, const int i3)

double	H_selfkerr (const double xi0, const double xi1, const double xi2, const double xi3, const int i0, const int i1, const int i2, const int i3)

double	H_crosskerr (const double xi01, const double xi02, const double xi03, const double xi12, const double xi13, const double xi23, const int i0, const int i1, const int i2, const int i3)

double	L2 (const double dephase0, const double dephase1, const double dephase2, const double dephase3, const int i0, const int i1, const int i2, const int i3, const int i0p, const int i1p, const int i2p, const int i3p)

double	L1diag (const double decay0, const double decay1, const double decay2, const double decay3, const int i0, const int i1, const int i2, const int i3, const int i0p, const int i1p, const int i2p, const int i3p)

int	TensorGetIndex (const int nlevels0, const int nlevels1, const int nlevels2, const int nlevels3, const int i0, const int i1, const int i2, const int i3, const int i0p, const int i1p, const int i2p, const int i3p)

double	H_detune (const double detuning0, const double detuning1, const double detuning2, const double detuning3, const double detuning4, const int i0, const int i1, const int i2, const int i3, const int i4)

double	H_selfkerr (const double xi0, const double xi1, const double xi2, const double xi3, const double xi4, const int i0, const int i1, const int i2, const int i3, const int i4)

double	H_crosskerr (const double xi01, const double xi02, const double xi03, const double xi04, const double xi12, const double xi13, const double xi14, const double xi23, const double xi24, const double xi34, const int i0, const int i1, const int i2, const int i3, const int i4)

double	L2 (const double dephase0, const double dephase1, const double dephase2, const double dephase3, const double dephase4, const int i0, const int i1, const int i2, const int i3, const int i4, const int i0p, const int i1p, const int i2p, const int i3p, const int i4p)

double	L1diag (const double decay0, const double decay1, const double decay2, const double decay3, const double decay4, const int i0, const int i1, const int i2, const int i3, const int i4, const int i0p, const int i1p, const int i2p, const int i3p, const int i4p)

int	TensorGetIndex (const int nlevels0, const int nlevels1, const int nlevels2, const int nlevels3, const int nlevels4, const int i0, const int i1, const int i2, const int i3, const int i4, const int i0p, const int i1p, const int i2p, const int i3p, const int i4p)

void	dRHSdp_getcoeffs (const PetscInt dim, const int it, const int n, const int np, const int i, const int ip, const int stridei, const int strideip, const double xptr, double res_p_re, double res_p_im, double res_q_re, double *res_q_im)
	Inline for Matrix-free RHS for gradient updates.

void	Jkl_coupling (const PetscInt dim, const int it, const int ni, const int nj, const int nip, const int njp, const int i, const int ip, const int j, const int jp, const int stridei, const int strideip, const int stridej, const int stridejp, const double xptr, const double Jij, const double cosij, const double sinij, double yre, double *yim)
	Matrix-free solver inline for dipole-dipole coupling between oscillators.

void	Jkl_coupling_T (const PetscInt dim, const int it, const int ni, const int nj, const int nip, const int njp, const int i, const int ip, const int j, const int jp, const int stridei, const int strideip, const int stridej, const int stridejp, const double xptr, const double Jij, const double cosij, const double sinij, double yre, double *yim)
	Transpose of dipole-dipole coupling for adjoint computations.

void	L1decay (const PetscInt dim, const int it, const int n, const int i, const int ip, const int stridei, const int strideip, const double xptr, const double decayi, double yre, double *yim)
	Matrix-free solver inline for off-diagonal L1 decay term.

void	L1decay_T (const PetscInt dim, const int it, const int i, const int ip, const int stridei, const int strideip, const double xptr, const double decayi, double yre, double *yim)
	Matrix-free inline Transpose of off-diagonal L1 decay for adjoint computations.

void	control (const PetscInt dim, const int it, const int n, const int i, const int np, const int ip, const int stridei, const int strideip, const double xptr, const double pt, const double qt, double yre, double *yim)
	Matrix-free solver inline for control terms.

void	control_T (const PetscInt dim, const int it, const int n, const int i, const int np, const int ip, const int stridei, const int strideip, const double xptr, const double pt, const double qt, double yre, double *yim)
	Matrix-free Transpose of control terms for adjoint computations.

Function Documentation

◆ applyRHS_matfree_1Osc()

int applyRHS_matfree_1Osc	(	Mat	RHS,
		Vec	x,
		Vec	y
	)

Matrix-vector products to apply the RHS system matrix to a state vector.

Each function returns y = RHS*x. Matrix-free versions as well as sparse-matrix versions are implemented. Those functions will be passed to PETSc's MatMult operations to realize a Matrix-Vector Multiplication of the RHS with a state vector, such that one can call PETSc's MatMult(RHS, x, y) for the RHS. Note: The RHS matrix must be assembled before usage, see MasterEq::assemble_RHS. Matrix-free MatMult for 1 oscillator

◆ applyRHS_matfree_2Osc()

int applyRHS_matfree_2Osc	(	Mat	RHS,
		Vec	x,
		Vec	y
	)

Matrix-free MatMult for 2 oscillators.

◆ applyRHS_matfree_3Osc()

int applyRHS_matfree_3Osc	(	Mat	RHS,
		Vec	x,
		Vec	y
	)

Matrix-free MatMult for 3 oscillators.

◆ applyRHS_matfree_4Osc()

int applyRHS_matfree_4Osc	(	Mat	RHS,
		Vec	x,
		Vec	y
	)

Matrix-free MatMult for 4 oscillators.

◆ applyRHS_matfree_5Osc()

int applyRHS_matfree_5Osc	(	Mat	RHS,
		Vec	x,
		Vec	y
	)

Matrix-free MatMult for 5 oscillators.

◆ applyRHS_matfree_transpose_1Osc()

int applyRHS_matfree_transpose_1Osc	(	Mat	RHS,
		Vec	x,
		Vec	y
	)

Transpose matrix-free MatMult for 1 oscillator.

◆ applyRHS_matfree_transpose_2Osc()

int applyRHS_matfree_transpose_2Osc	(	Mat	RHS,
		Vec	x,
		Vec	y
	)

Transpose matrix-free MatMult for 2 oscillators.

◆ applyRHS_matfree_transpose_3Osc()

int applyRHS_matfree_transpose_3Osc	(	Mat	RHS,
		Vec	x,
		Vec	y
	)

Transpose matrix-free MatMult for 3 oscillators.

◆ applyRHS_matfree_transpose_4Osc()

int applyRHS_matfree_transpose_4Osc	(	Mat	RHS,
		Vec	x,
		Vec	y
	)

Transpose matrix-free MatMult for 4 oscillators.

◆ applyRHS_matfree_transpose_5Osc()

int applyRHS_matfree_transpose_5Osc	(	Mat	RHS,
		Vec	x,
		Vec	y
	)

Transpose matrix-free MatMult for 5 oscillators.

◆ applyRHS_sparsemat()

int applyRHS_sparsemat	(	Mat	RHS,
		Vec	x,
		Vec	y
	)

Sparse matrix MatMult.

◆ applyRHS_sparsemat_transpose()

int applyRHS_sparsemat_transpose	(	Mat	RHS,
		Vec	x,
		Vec	y
	)

Transpose sparse matrix MatMult.

◆ compute_dRHS_dParams_matfree()

void compute_dRHS_dParams_matfree	(	const PetscInt	dim,
		const double	t,
		const Vec	x,
		const Vec	x_bar,
		const double	alpha,
		Vec	grad,
		std::vector< size_t > &	nlevels,
		DecoherenceType	decoherence_type,
		Oscillator **	oscil_vec
	)

: Matrix free version to compute gradient of RHS with respect to parameters

Updates grad += alpha * x^T * (d RHS / d params)^T * x_bar in a matrix-free manner. See compute_dRHS_dParams_sparsemat for the sparse-matrix version of this routine.

Parameters

[in]	dim	Dimension of full vectorized system: N^2 if Lindblad, N if Schroedinger
[in]	t	Current time
[in]	x	State vector
[in]	x_bar	Adjoint state vector
[in]	alpha	Scaling factor
[out]	grad	Gradient vector to update
[in]	nlevels	Number of energy levels per subsystem
[in]	decoherence_type	Type of Lindblad decoherence operators, or NONE
[in]	oscil_vec	Vector of quantum oscillators

◆ compute_dRHS_dParams_sparsemat()

void compute_dRHS_dParams_sparsemat	(	const double	t,
		const Vec	x,
		const Vec	x_bar,
		const double	alpha,
		Vec	grad,
		std::vector< size_t > &	nlevels,
		IS	isu,
		IS	isv,
		std::vector< Mat > &	Ac_vec,
		std::vector< Mat > &	Bc_vec,
		Vec	aux,
		Oscillator **	oscil_vec
	)

: Sparse-matrix version to compute gradient of RHS with respect to parameters

Updates grad += alpha * x^T * (d RHS / d params)^T * x_bar with sparse-matrix version of RHS. Compare compute_dRHS_dParams_matfree for the matrix-free version of this routine.

Parameters

[in]	t	Current time
[in]	x	State vector
[in]	x_bar	Adjoint state vector
[in]	alpha	Scaling factor
[out]	grad	Gradient vector to update
[in]	nlevels	Number of energy levels per subsystem
[in]	isu	Index stride to access real parts of a state vector
[in]	isv	Index stride to access imaginar parts of a state vector
[in]	Ac_vec	Vector of real parts of control matrices per oscillator
[in]	Bc_vec	Vector of imaginary parts of control matrices per oscillator
[in]	aux	Auxiliary vector for computations
[in]	oscil_vec	Vector of quantum oscilators

◆ control()

void control	(	const PetscInt	dim,
		const int	it,
		const int	n,
		const int	i,
		const int	np,
		const int	ip,
		const int	stridei,
		const int	strideip,
		const double *	xptr,
		const double	pt,
		const double	qt,
		double *	yre,
		double *	yim
	)

inline

Matrix-free solver inline for control terms.

Applies control Hamiltonian terms (ladder operators) to the state.

Parameters

dim	Dimension of full vectorized system: N^2 if Lindblad, N if Schroedinger
it	Current tensor index
n	Number of levels
i	Occupation number (bra)
np	Number of levels (conjugate)
ip	Occupation number (ket)
stridei	Stride for bra index
strideip	Stride for ket index
xptr	Pointer to state vector data
pt	Real part of control amplitude
qt	Imaginary part of control amplitude
yre	Pointer to store real part of result
yim	Pointer to store imaginary part of result

◆ control_T()

void control_T	(	const PetscInt	dim,
		const int	it,
		const int	n,
		const int	i,
		const int	np,
		const int	ip,
		const int	stridei,
		const int	strideip,
		const double *	xptr,
		const double	pt,
		const double	qt,
		double *	yre,
		double *	yim
	)

inline

Matrix-free Transpose of control terms for adjoint computations.

Parameters

dim	Dimension of full vectorized system: N^2 if Lindblad, N if Schroedinger
it	Current tensor index
n	Number of levels
i	Occupation number (bra)
np	Number of levels (conjugate)
ip	Occupation number (ket)
stridei	Stride for bra index
strideip	Stride for ket index
xptr	Pointer to state vector data
pt	Real part of control amplitude
qt	Imaginary part of control amplitude
yre	Pointer to store real part of result
yim	Pointer to store imaginary part of result

◆ dRHSdp_getcoeffs()

void dRHSdp_getcoeffs	(	const PetscInt	dim,
		const int	it,
		const int	n,
		const int	np,
		const int	i,
		const int	ip,
		const int	stridei,
		const int	strideip,
		const double *	xptr,
		double *	res_p_re,
		double *	res_p_im,
		double *	res_q_re,
		double *	res_q_im
	)

inline

Inline for Matrix-free RHS for gradient updates.

Computes coefficients for gradient computation with respect to control parameters.

Parameters

dim	Dimension of full vectorized system: N^2 if Lindblad, N if Schroedinger
it	Current tensor index
n	Number of levels for current oscillator
np	Number of levels for conjugate oscillator
i	Current occupation number
ip	Conjugate occupation number
stridei	Stride for current oscillator
strideip	Stride for conjugate oscillator
xptr	Pointer to state vector data
res_p_re	Pointer to store real part of p result
res_p_im	Pointer to store imaginary part of p result
res_q_re	Pointer to store real part of q result
res_q_im	Pointer to store imaginary part of q result

◆ H_crosskerr() [1/4]

double H_crosskerr	(	const double	xi01,
		const double	xi02,
		const double	xi03,
		const double	xi04,
		const double	xi12,
		const double	xi13,
		const double	xi14,
		const double	xi23,
		const double	xi24,
		const double	xi34,
		const int	i0,
		const int	i1,
		const int	i2,
		const int	i3,
		const int	i4
	)

inline

◆ H_crosskerr() [2/4]

double H_crosskerr	(	const double	xi01,
		const double	xi02,
		const double	xi03,
		const double	xi12,
		const double	xi13,
		const double	xi23,
		const int	i0,
		const int	i1,
		const int	i2,
		const int	i3
	)

inline

◆ H_crosskerr() [3/4]

double H_crosskerr	(	const double	xi01,
		const double	xi02,
		const double	xi12,
		const int	i0,
		const int	i1,
		const int	i2
	)

inline

◆ H_crosskerr() [4/4]

double H_crosskerr	(	const double	xi01,
		const int	a,
		const int	b
	)

inline

Inline for Matrix-free RHS, Computes cross-Kerr coupling between 2 oscillators.

Parameters

xi01	Cross-Kerr coefficient between oscillators 0 and 1
a	Occupation number for oscillator 0
b	Occupation number for oscillator 1

Returns: double Cross-Kerr energy contribution

◆ H_detune() [1/5]

double H_detune	(	const double	detuning0,
		const double	detuning1,
		const double	detuning2,
		const double	detuning3,
		const double	detuning4,
		const int	i0,
		const int	i1,
		const int	i2,
		const int	i3,
		const int	i4
	)

inline

◆ H_detune() [2/5]

double H_detune	(	const double	detuning0,
		const double	detuning1,
		const double	detuning2,
		const double	detuning3,
		const int	i0,
		const int	i1,
		const int	i2,
		const int	i3
	)

inline

◆ H_detune() [3/5]

double H_detune	(	const double	detuning0,
		const double	detuning1,
		const double	detuning2,
		const int	i0,
		const int	i1,
		const int	i2
	)

inline

◆ H_detune() [4/5]

double H_detune	(	const double	detuning0,
		const double	detuning1,
		const int	a,
		const int	b
	)

inline

Inline for Matrix-free RHS, Computes detuning Hamiltonian term for 2 oscillators.

Parameters

detuning0	Detuning frequency for oscillator 0
detuning1	Detuning frequency for oscillator 1
a	Occupation number for oscillator 0
b	Occupation number for oscillator 1

Returns: double Total detuning energy contribution

◆ H_detune() [5/5]

double H_detune	(	const double	detuning0,
		const int	a
	)

inline

Inline for Matrix-free RHS to Compute detuning for 1 oscillator.

Parameters

detuning0	Detuning frequency
a	Occupation number

Returns: double Detuning energy contribution

◆ H_selfkerr() [1/5]

double H_selfkerr	(	const double	xi0,
		const double	xi1,
		const double	xi2,
		const double	xi3,
		const double	xi4,
		const int	i0,
		const int	i1,
		const int	i2,
		const int	i3,
		const int	i4
	)

inline

◆ H_selfkerr() [2/5]

double H_selfkerr	(	const double	xi0,
		const double	xi1,
		const double	xi2,
		const double	xi3,
		const int	i0,
		const int	i1,
		const int	i2,
		const int	i3
	)

inline

◆ H_selfkerr() [3/5]

double H_selfkerr	(	const double	xi0,
		const double	xi1,
		const double	xi2,
		const int	i0,
		const int	i1,
		const int	i2
	)

inline

◆ H_selfkerr() [4/5]

double H_selfkerr	(	const double	xi0,
		const double	xi1,
		const int	a,
		const int	b
	)

inline

Inline for Matrix-free RHS, Computes self-Kerr nonlinearity terms for 2 oscillators.

Parameters

xi0	Self-Kerr coefficient for oscillator 0
xi1	Self-Kerr coefficient for oscillator 1
a	Occupation number for oscillator 0
b	Occupation number for oscillator 1

Returns: double Total self-Kerr energy contribution

◆ H_selfkerr() [5/5]

double H_selfkerr	(	const double	xi0,
		const int	a
	)

inline

Inline for Matrix-free RHS to Compute self-Kerr coefficient for 1 oscillator.

Parameters

xi0	Self-Kerr coefficient for oscillator 0
a	Occupation number

Returns: double Self-Kerr energy contribution

◆ Jkl_coupling()

void Jkl_coupling	(	const PetscInt	dim,
		const int	it,
		const int	ni,
		const int	nj,
		const int	nip,
		const int	njp,
		const int	i,
		const int	ip,
		const int	j,
		const int	jp,
		const int	stridei,
		const int	strideip,
		const int	stridej,
		const int	stridejp,
		const double *	xptr,
		const double	Jij,
		const double	cosij,
		const double	sinij,
		double *	yre,
		double *	yim
	)

inline

Matrix-free solver inline for dipole-dipole coupling between oscillators.

Implements J_kl coupling terms in the rotating frame between oscillator i and j.

Parameters

dim	Dimension of full vectorized system: N^2 if Lindblad, N if Schroedinger
it	Current tensor index
ni	Number of levels for oscillator i
nj	Number of levels for oscillator j
nip	Number of levels for oscillator i (conjugate)
njp	Number of levels for oscillator j (conjugate)
i	Occupation number for oscillator i
ip	Occupation number for oscillator i (conjugate)
j	Occupation number for oscillator j
jp	Occupation number for oscillator j (conjugate)
stridei	Stride for oscillator i
strideip	Stride for oscillator i (conjugate)
stridej	Stride for oscillator j
stridejp	Stride for oscillator j (conjugate)
xptr	Pointer to state vector data
Jij	Coupling coefficient
cosij	Cosine of frequency difference
sinij	Sine of frequency difference
yre	Pointer to store real part of result
yim	Pointer to store imaginary part of result

◆ Jkl_coupling_T()

void Jkl_coupling_T	(	const PetscInt	dim,
		const int	it,
		const int	ni,
		const int	nj,
		const int	nip,
		const int	njp,
		const int	i,
		const int	ip,
		const int	j,
		const int	jp,
		const int	stridei,
		const int	strideip,
		const int	stridej,
		const int	stridejp,
		const double *	xptr,
		const double	Jij,
		const double	cosij,
		const double	sinij,
		double *	yre,
		double *	yim
	)

inline

Transpose of dipole-dipole coupling for adjoint computations.

Parameters

dim	Dimension of full vectorized system: N^2 if Lindblad, N if Schroedinger
it	Current tensor index
ni	Number of levels for oscillator i
nj	Number of levels for oscillator j
nip	Number of levels for oscillator i (conjugate)
njp	Number of levels for oscillator j (conjugate)
i	Occupation number for oscillator i
ip	Occupation number for oscillator i (conjugate)
j	Occupation number for oscillator j
jp	Occupation number for oscillator j (conjugate)
stridei	Stride for oscillator i
strideip	Stride for oscillator i (conjugate)
stridej	Stride for oscillator j
stridejp	Stride for oscillator j (conjugate)
xptr	Pointer to state vector data
Jij	Coupling coefficient
cosij	Cosine of frequency difference
sinij	Sine of frequency difference
yre	Pointer to store real part of result
yim	Pointer to store imaginary part of result

◆ L1decay()

void L1decay	(	const PetscInt	dim,
		const int	it,
		const int	n,
		const int	i,
		const int	ip,
		const int	stridei,
		const int	strideip,
		const double *	xptr,
		const double	decayi,
		double *	yre,
		double *	yim
	)

inline

Matrix-free solver inline for off-diagonal L1 decay term.

Parameters

dim	Dimension of full vectorized system: N^2 if Lindblad, N if Schroedinger
it	Current tensor index
n	Number of levels
i	Occupation number (bra)
ip	Occupation number (ket)
stridei	Stride for bra index
strideip	Stride for ket index
xptr	Pointer to state vector data
decayi	Decay rate
yre	Pointer to store real part of result
yim	Pointer to store imaginary part of result

◆ L1decay_T()

void L1decay_T	(	const PetscInt	dim,
		const int	it,
		const int	i,
		const int	ip,
		const int	stridei,
		const int	strideip,
		const double *	xptr,
		const double	decayi,
		double *	yre,
		double *	yim
	)

inline

Matrix-free inline Transpose of off-diagonal L1 decay for adjoint computations.

Parameters

dim	Dimension of full vectorized system: N^2 if Lindblad, N if Schroedinger
it	Current tensor index
i	Occupation number (bra)
ip	Occupation number (ket)
stridei	Stride for bra index
strideip	Stride for ket index
xptr	Pointer to state vector data
decayi	Decay rate
yre	Pointer to store real part of result
yim	Pointer to store imaginary part of result

◆ L1diag() [1/5]

double L1diag	(	const double	decay0,
		const double	decay1,
		const double	decay2,
		const double	decay3,
		const double	decay4,
		const int	i0,
		const int	i1,
		const int	i2,
		const int	i3,
		const int	i4,
		const int	i0p,
		const int	i1p,
		const int	i2p,
		const int	i3p,
		const int	i4p
	)

inline

◆ L1diag() [2/5]

double L1diag	(	const double	decay0,
		const double	decay1,
		const double	decay2,
		const double	decay3,
		const int	i0,
		const int	i1,
		const int	i2,
		const int	i3,
		const int	i0p,
		const int	i1p,
		const int	i2p,
		const int	i3p
	)

inline

◆ L1diag() [3/5]

double L1diag	(	const double	decay0,
		const double	decay1,
		const double	decay2,
		const int	i0,
		const int	i1,
		const int	i2,
		const int	i0p,
		const int	i1p,
		const int	i2p
	)

inline

◆ L1diag() [4/5]

double L1diag	(	const double	decay0,
		const double	decay1,
		const int	i0,
		const int	i1,
		const int	i0p,
		const int	i1p
	)

inline

Inline for Matrix-free RHS, Computes L1 decay Lindblad operator diagonal term for 2 oscillators.

Parameters

decay0	Decay rate for oscillator 0
decay1	Decay rate for oscillator 1
i0	Occupation number for oscillator 0 (bra)
i1	Occupation number for oscillator 1 (bra)
i0p	Occupation number for oscillator 0 (ket)
i1p	Occupation number for oscillator 1 (ket)

Returns: double Total L1 diagonal contribution

◆ L1diag() [5/5]

double L1diag	(	const double	decay0,
		const int	i0,
		const int	i0p
	)

inline

Inline for Matrix-free RHS to compute L1 decay coefficient for 1 oscillator.

Parameters

decay0	Decay rate for oscillator 0
i0	Occupation number (bra)
i0p	Occupation number (ket)

Returns: double L1 diagonal contribution

◆ L2() [1/5]

double L2	(	const double	dephase0,
		const double	dephase1,
		const double	dephase2,
		const double	dephase3,
		const double	dephase4,
		const int	i0,
		const int	i1,
		const int	i2,
		const int	i3,
		const int	i4,
		const int	i0p,
		const int	i1p,
		const int	i2p,
		const int	i3p,
		const int	i4p
	)

inline

◆ L2() [2/5]

double L2	(	const double	dephase0,
		const double	dephase1,
		const double	dephase2,
		const double	dephase3,
		const int	i0,
		const int	i1,
		const int	i2,
		const int	i3,
		const int	i0p,
		const int	i1p,
		const int	i2p,
		const int	i3p
	)

inline

◆ L2() [3/5]

double L2	(	const double	dephase0,
		const double	dephase1,
		const double	dephase2,
		const int	i0,
		const int	i1,
		const int	i2,
		const int	i0p,
		const int	i1p,
		const int	i2p
	)

inline

◆ L2() [4/5]

double L2	(	const double	dephase0,
		const double	dephase1,
		const int	i0,
		const int	i1,
		const int	i0p,
		const int	i1p
	)

inline

Inline for Matrix-free RHS, Computes L2 dephasing Lindblad operator for 2 oscillators.

Parameters

dephase0	Dephasing rate for oscillator 0
dephase1	Dephasing rate for oscillator 1
i0	Occupation number for oscillator 0 (bra)
i1	Occupation number for oscillator 1 (bra)
i0p	Occupation number for oscillator 0 (ket)
i1p	Occupation number for oscillator 1 (ket)

Returns: double Total L2 operator contribution

◆ L2() [5/5]

double L2	(	const double	dephase0,
		const int	i0,
		const int	i0p
	)

inline

Inline for Matrix-free RHS to compute L2 dephasing coefficient for 1 oscillator.

Parameters

dephase0	Dephasing rate for oscillator 0
i0	Occupation number (bra)
i0p	Occupation number (ket)

Returns: double L2 operator contribution

◆ TensorGetIndex() [1/5]

int TensorGetIndex	(	const int	nlevels0,
		const int	i0,
		const int	i0p
	)

inline

Inline for Matrix-free RHS to compute tensor product index for 1 oscillator system.

Parameters

nlevels0	Number of levels for oscillator 0
i0	Occupation number (bra)
i0p	Occupation number (ket)

Returns: int Linear index in tensor product space

◆ TensorGetIndex() [2/5]

int TensorGetIndex	(	const int	nlevels0,
		const int	nlevels1,
		const int	i0,
		const int	i1,
		const int	i0p,
		const int	i1p
	)

inline

Inline for Matrix-free RHS, Computes tensor product index for 2 oscillator system.

Parameters

nlevels0	Number of levels for oscillator 0
nlevels1	Number of levels for oscillator 1
i0	Occupation number for oscillator 0 (bra)
i1	Occupation number for oscillator 1 (bra)
i0p	Occupation number for oscillator 0 (ket)
i1p	Occupation number for oscillator 1 (ket)

Returns: int Linear index in tensor product space

◆ TensorGetIndex() [3/5]

int TensorGetIndex	(	const int	nlevels0,
		const int	nlevels1,
		const int	nlevels2,
		const int	i0,
		const int	i1,
		const int	i2,
		const int	i0p,
		const int	i1p,
		const int	i2p
	)

inline

◆ TensorGetIndex() [4/5]

int TensorGetIndex	(	const int	nlevels0,
		const int	nlevels1,
		const int	nlevels2,
		const int	nlevels3,
		const int	i0,
		const int	i1,
		const int	i2,
		const int	i3,
		const int	i0p,
		const int	i1p,
		const int	i2p,
		const int	i3p
	)

inline

◆ TensorGetIndex() [5/5]

int TensorGetIndex	(	const int	nlevels0,
		const int	nlevels1,
		const int	nlevels2,
		const int	nlevels3,
		const int	nlevels4,
		const int	i0,
		const int	i1,
		const int	i2,
		const int	i3,
		const int	i4,
		const int	i0p,
		const int	i1p,
		const int	i2p,
		const int	i3p,
		const int	i4p
	)

inline

Classes

Functions

Function Documentation

◆ applyRHS_matfree_1Osc()

◆ applyRHS_matfree_2Osc()

◆ applyRHS_matfree_3Osc()

◆ applyRHS_matfree_4Osc()

◆ applyRHS_matfree_5Osc()

◆ applyRHS_matfree_transpose_1Osc()

◆ applyRHS_matfree_transpose_2Osc()

◆ applyRHS_matfree_transpose_3Osc()

◆ applyRHS_matfree_transpose_4Osc()

◆ applyRHS_matfree_transpose_5Osc()

◆ applyRHS_sparsemat()

◆ applyRHS_sparsemat_transpose()

◆ compute_dRHS_dParams_matfree()

◆ compute_dRHS_dParams_sparsemat()

◆ control()

◆ control_T()

◆ dRHSdp_getcoeffs()

◆ H_crosskerr() [1/4]

◆ H_crosskerr() [2/4]

◆ H_crosskerr() [3/4]

◆ H_crosskerr() [4/4]

◆ H_detune() [1/5]

◆ H_detune() [2/5]

◆ H_detune() [3/5]

◆ H_detune() [4/5]

◆ H_detune() [5/5]

◆ H_selfkerr() [1/5]

◆ H_selfkerr() [2/5]

◆ H_selfkerr() [3/5]

◆ H_selfkerr() [4/5]

◆ H_selfkerr() [5/5]

◆ Jkl_coupling()

◆ Jkl_coupling_T()

◆ L1decay()

◆ L1decay_T()

◆ L1diag() [1/5]

◆ L1diag() [2/5]

◆ L1diag() [3/5]

◆ L1diag() [4/5]

◆ L1diag() [5/5]

◆ L2() [1/5]

◆ L2() [2/5]

◆ L2() [3/5]

◆ L2() [4/5]

◆ L2() [5/5]

◆ TensorGetIndex() [1/5]

◆ TensorGetIndex() [2/5]

◆ TensorGetIndex() [3/5]

◆ TensorGetIndex() [4/5]

◆ TensorGetIndex() [5/5]
