defs.hpp File Reference

Core type definitions and enumerations for Quandary quantum optimal control. More...

#include <map>
#include <optional>
#include <string>
#include <vector>

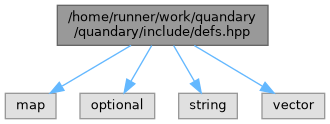

Include dependency graph for defs.hpp:

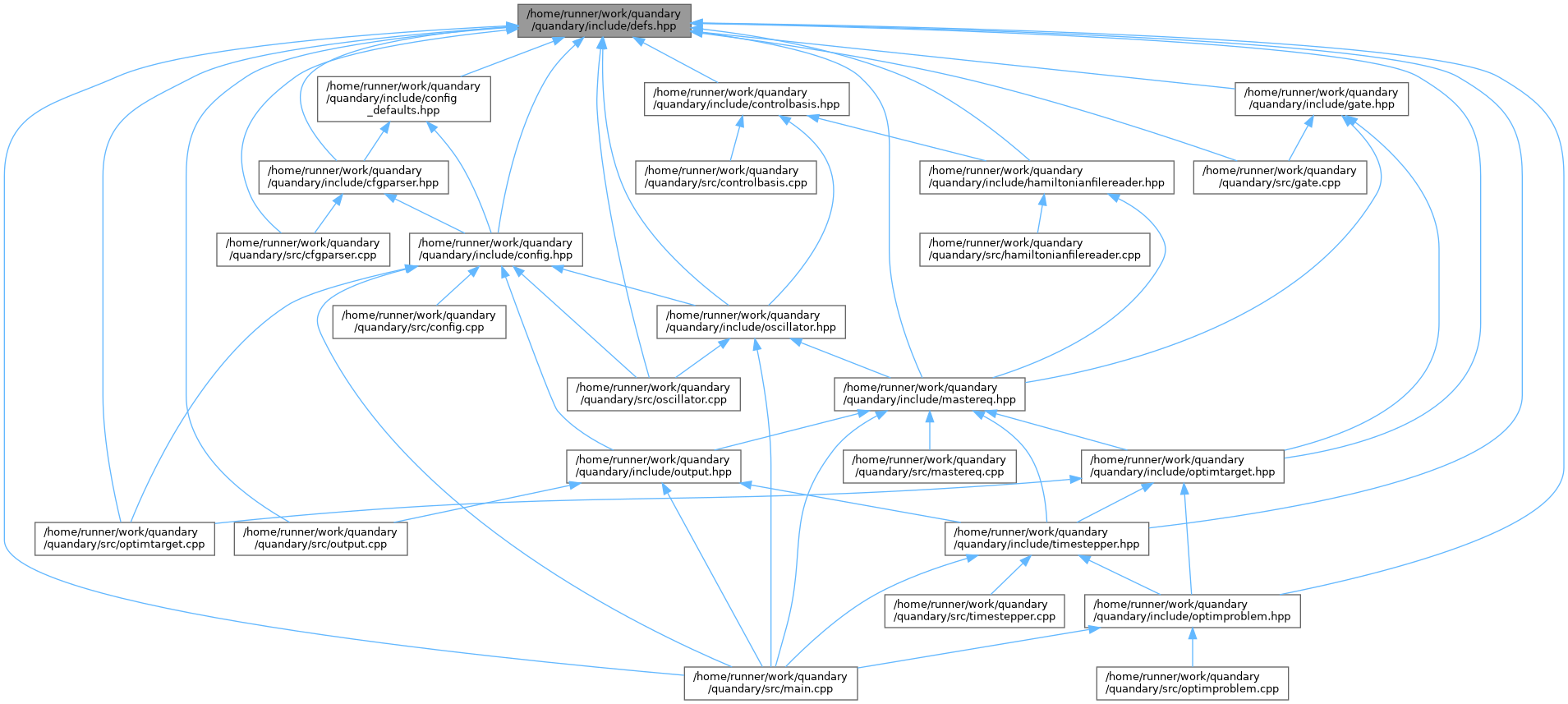

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros
#define	M_PI   3.14159265358979323846
#define	SQR(x)   (x)*(x)

Enumerations
enum class	DecoherenceType { NONE , DECAY , DEPHASE , BOTH }
	Available Lindblad operator types for open quantum systems, or NONE for closed quantum systems. More...
enum class	InitialConditionType {   FROMFILE , PRODUCT_STATE , ENSEMBLE , DIAGONAL ,   BASIS , THREESTATES , NPLUSONE , PERFORMANCE }
	Available types of initial conditions that are propagated through the quantum dynamics. More...
enum class	TargetType { NONE , GATE , STATE }
	Types of optimization targets for quantum control. More...
enum class	ObjectiveType { JFROBENIUS , JTRACE , JMEASURE }
	Types of objective functions for quantum control optimization. More...
enum class	LinearSolverType { GMRES , NEUMANN }
	Available types for solving linear systems at each time step. More...
enum class	RunType {   SIMULATION , GRADIENT , OPTIMIZATION , EVALCONTROLS ,   NONE }
	Types of execution modes. More...
enum class	ControlType { NONE , BSPLINE , BSPLINEAMP , BSPLINE0 }
	Types of control parameterizations. More...
enum class	ControlInitializationType { CONSTANT , RANDOM , FILE }
	Types of control initializations. More...
enum class	TimeStepperType { IMR , IMR4 , IMR8 , EE }
	Types of time-stepping methods for evolving quantum states. More...
enum class	GateType {   NONE , XGATE , YGATE , ZGATE ,   HADAMARD , CNOT , SWAP , SWAP_0Q ,   CQNOT , QFT , FILE }
	Types of quantum gates used in quantum control. More...
enum class	OutputType {   EXPECTED_ENERGY , EXPECTED_ENERGY_COMPOSITE , POPULATION , POPULATION_COMPOSITE ,   FULLSTATE }
	Types of output files to be written. More...

Variables
const std::map< std::string, DecoherenceType >	DECOHERENCE_TYPE_MAP
const std::map< std::string, InitialConditionType >	INITCOND_TYPE_MAP
const std::map< std::string, TargetType >	TARGET_TYPE_MAP
const std::map< std::string, ObjectiveType >	OBJECTIVE_TYPE_MAP
const std::map< std::string, LinearSolverType >	LINEAR_SOLVER_TYPE_MAP
const std::map< std::string, RunType >	RUN_TYPE_MAP
const std::map< std::string, ControlType >	CONTROL_TYPE_MAP
const std::map< std::string, ControlInitializationType >	CONTROL_INITIALIZATION_TYPE_MAP
const std::map< std::string, TimeStepperType >	TIME_STEPPER_TYPE_MAP
const std::map< std::string, GateType >	GATE_TYPE_MAP
const std::map< std::string, OutputType >	OUTPUT_TYPE_MAP

Detailed Description

Core type definitions and enumerations for Quandary quantum optimal control.

This file contains fundamental type definitions, enumeration classes, and constants used throughout the Quandary quantum optimal control framework. It defines solver types, target specifications, objective functions, and control parameterizations.

Macro Definition Documentation

M_PI

#define M_PI   3.14159265358979323846

SQR

#define SQR

(

x

)

(x)*(x)

Enumeration Type Documentation

ControlInitializationType

enum class ControlInitializationType

strong

Types of control initializations.

Enumerator
CONSTANT	Constant.
RANDOM	Random.
FILE	From file.

ControlType

enum class ControlType

strong

Types of control parameterizations.

Defines how control pulses are parameterized for optimization and simulation.

Enumerator
NONE	Non-controllable.
BSPLINE	Control pulses are parameterized with 2nd order BSpline basis functions with carrier waves.
BSPLINEAMP	Paramerizes only the amplitudes of the control pulse with 2nd order BSpline basis functions.
BSPLINE0	Control pulses are parameterized with Zeroth order Bspline (piece-wise constant)

DecoherenceType

enum class DecoherenceType

strong

Available Lindblad operator types for open quantum systems, or NONE for closed quantum systems.

For open quantum systems, this defines the types of dissipation and decoherence operators that can be applied to the quantum system in Lindblad master equation.

Note

If this is NONE, the quantum system is considered closed, solving Schroedinger's equation rather than Lindblad's master equation.

Enumerator
NONE	No Lindblad operators (closed system)
DECAY	Decay operators only.
DEPHASE	Dephasing operators only.
BOTH	Both decay and dephasing operators.

GateType

enum class GateType

strong

Types of quantum gates used in quantum control.

Enumerator
NONE	No gate.
XGATE	X gate (Pauli-X)
YGATE	Y gate (Pauli-Y)
ZGATE	Z gate (Pauli-Z)
HADAMARD	Hadamard gate.
CNOT	CNOT gate.
SWAP	SWAP gate.
SWAP_0Q	Multi-qubit SWAP gate with 0 qubit.
CQNOT	Multi-qubit CQNOT gate.
QFT	QFT gate.
FILE	Gate defined in a file.

InitialConditionType

enum class InitialConditionType

strong

Available types of initial conditions that are propagated through the quantum dynamics.

Defines how the initial quantum state is specified and prepared for simulation or optimization.

Enumerator
FROMFILE	Read initial condition from file.
PRODUCT_STATE	Product state initial condition.
ENSEMBLE	Ensemble of states.
DIAGONAL	Diagonal density matrix.
BASIS	Basis state.
THREESTATES	Three-state system.
NPLUSONE	N+1 state system.
PERFORMANCE	Performance test configuration.

LinearSolverType

enum class LinearSolverType

strong

Available types for solving linear systems at each time step.

Defines the numerical methods used to solve linear systems arising in quantum dynamics simulations at each time step.

Enumerator
GMRES	Uses Petsc's GMRES solver (default)
NEUMANN	Uses Neuman power iterations.

ObjectiveType

enum class ObjectiveType

strong

Types of objective functions for quantum control optimization.

Defines different metrics for measuring the quality of quantum control.

Enumerator
JFROBENIUS	Weighted Frobenius norm: \(\frac{1}{2} \frac{\|\rho_{\text{target}} - \rho(T)\|_F^2}{w}\), where \(w\) = purity of \(\rho_{\text{target}}\).
JTRACE	Weighted Hilbert-Schmidt overlap: \(1 - \frac{\text{Tr}(\rho_{\text{target}}^\dagger \rho(T))}{w}\), where \(w\) = purity of \(\rho_{\text{target}}\).
JMEASURE	Pure state measurement: \(\text{Tr}(O_m \rho(T))\) for observable \(O_m\).

OutputType

enum class OutputType

strong

Types of output files to be written.

Enumerator
EXPECTED_ENERGY	Expected energy.
EXPECTED_ENERGY_COMPOSITE	Expected energy composite.
POPULATION	Population.
POPULATION_COMPOSITE	Population composite.
FULLSTATE	Full state.

RunType

enum class RunType

strong

Types of execution modes.

Defines what type of computation should be performed.

Enumerator
SIMULATION	Runs one simulation to compute the objective function (forward)
GRADIENT	Runs a simulation followed by the adjoint for gradient computation (forward & backward)
OPTIMIZATION	Runs optimization iterations.
EVALCONTROLS	Only evaluates the current control pulses (no simulation)
NONE	Don't run anything.

TargetType

enum class TargetType

strong

Types of optimization targets for quantum control.

Defines the target quantum state or operation for optimization.

Enumerator
NONE	No target specified (no optimization)
GATE	Gate optimization: \(\rho_{\text{target}} = V\rho(0) V^\dagger\) for V either read from file or chosen from default set of gates.
STATE	State preparation: Either read from file, or \(\rho_{\text{target}} = e_m e_m^\dagger\) for some integer \(m\).

TimeStepperType

enum class TimeStepperType

strong

Types of time-stepping methods for evolving quantum states.

Defines the numerical methods used to evolve quantum states in time.

Enumerator
IMR	Implicit Midpoint Rule (2nd order)
IMR4	Implicit Midpoint Rule with 4th order extrapolation.
IMR8	Implicit Midpoint Rule with 8th order extrapolation.
EE	Explicit Euler (1st order)

Variable Documentation

CONTROL_INITIALIZATION_TYPE_MAP

const std::map<std::string, ControlInitializationType> CONTROL_INITIALIZATION_TYPE_MAP

Initial value:

= {
    {"constant", ControlInitializationType::CONSTANT},
    {"random", ControlInitializationType::RANDOM},
    {"file", ControlInitializationType::FILE},
}

CONTROL_TYPE_MAP

const std::map<std::string, ControlType> CONTROL_TYPE_MAP

Initial value:

= {
    {"none", ControlType::NONE},
    {"spline", ControlType::BSPLINE},
    {"spline_amplitude", ControlType::BSPLINEAMP},
    {"spline0", ControlType::BSPLINE0}
}

DECOHERENCE_TYPE_MAP

const std::map<std::string, DecoherenceType> DECOHERENCE_TYPE_MAP

Initial value:

= {
    {"none", DecoherenceType::NONE},
    {"decay", DecoherenceType::DECAY},
    {"dephase", DecoherenceType::DEPHASE},
    {"both", DecoherenceType::BOTH}
}

GATE_TYPE_MAP

const std::map<std::string, GateType> GATE_TYPE_MAP

Initial value:

= {
    {"none", GateType::NONE},
    {"xgate", GateType::XGATE},
    {"ygate", GateType::YGATE},
    {"zgate", GateType::ZGATE},
    {"hadamard", GateType::HADAMARD},
    {"cnot", GateType::CNOT},
    {"swap", GateType::SWAP},
    {"swap0q", GateType::SWAP_0Q},
    {"cqnot", GateType::CQNOT},
    {"qft", GateType::QFT},
    {"file", GateType::FILE}
}

INITCOND_TYPE_MAP

const std::map<std::string, InitialConditionType> INITCOND_TYPE_MAP

Initial value:

= {
    {"file", InitialConditionType::FROMFILE},
    {"state", InitialConditionType::PRODUCT_STATE},
    {"ensemble", InitialConditionType::ENSEMBLE},
    {"diagonal", InitialConditionType::DIAGONAL},
    {"basis", InitialConditionType::BASIS},
    {"3states", InitialConditionType::THREESTATES},
    {"nplus1", InitialConditionType::NPLUSONE},
    {"performance", InitialConditionType::PERFORMANCE}
}

LINEAR_SOLVER_TYPE_MAP

const std::map<std::string, LinearSolverType> LINEAR_SOLVER_TYPE_MAP

Initial value:

= {
    {"gmres", LinearSolverType::GMRES},
    {"neumann", LinearSolverType::NEUMANN}
}

OBJECTIVE_TYPE_MAP

const std::map<std::string, ObjectiveType> OBJECTIVE_TYPE_MAP

Initial value:

= {
    {"jfrobenius", ObjectiveType::JFROBENIUS},
    {"jtrace", ObjectiveType::JTRACE},
    {"jmeasure", ObjectiveType::JMEASURE}
}

OUTPUT_TYPE_MAP

const std::map<std::string, OutputType> OUTPUT_TYPE_MAP

Initial value:

= {
  {"expectedenergy", OutputType::EXPECTED_ENERGY},
  {"expectedenergycomposite", OutputType::EXPECTED_ENERGY_COMPOSITE},
  {"population", OutputType::POPULATION},
  {"populationcomposite", OutputType::POPULATION_COMPOSITE},
  {"fullstate", OutputType::FULLSTATE},
}

RUN_TYPE_MAP

const std::map<std::string, RunType> RUN_TYPE_MAP

Initial value:

= {
    {"simulation", RunType::SIMULATION},
    {"gradient", RunType::GRADIENT},
    {"optimization", RunType::OPTIMIZATION},
    {"evalcontrols", RunType::EVALCONTROLS},
    {"none", RunType::NONE}
}

TARGET_TYPE_MAP

const std::map<std::string, TargetType> TARGET_TYPE_MAP

Initial value:

= {
    {"none", TargetType::NONE},
    {"gate", TargetType::GATE},
    {"state", TargetType::STATE},
}

TIME_STEPPER_TYPE_MAP

const std::map<std::string, TimeStepperType> TIME_STEPPER_TYPE_MAP

Initial value:

= {
    {"imr", TimeStepperType::IMR},
    {"imr4", TimeStepperType::IMR4},
    {"imr8", TimeStepperType::IMR8},
    {"ee", TimeStepperType::EE}
}
