Abstract base class for control parameterizations. More...

#include <controlbasis.hpp>

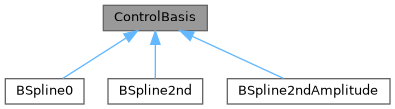

Inheritance diagram for ControlBasis:

[legend]

Public Member Functions
	ControlBasis ()

	ControlBasis (int nparams_, double tstart, double tstop, bool enforceZeroBoundary)
	Constructor with parameters.

virtual	~ControlBasis ()

int	getNparams ()
	Retrieves the number of parameters defining the controls.

double	getTstart ()
	Retrieves the start time of the interval.

double	getTstop ()
	Retrieves the stop time of the interval.

ControlType	getType ()
	Retrieves the type of control parameterization.

void	setSkip (int skip_)
	Sets the offset for the starting location in the global control vector.

int	getSkip ()
	Retrieves the offset for the starting location in the global control vector.

virtual int	getNSplines ()
	Retrieves the number of splines (default implementation returns 0).

virtual double	computeVariation (std::vector< double > &, int)
	Computes the variation of control parameters (default implementation returns 0.0).

virtual void	computeVariation_diff (double *, std::vector< double > &, double, int)
	Computes the gradient of the variation (default implementation does nothing).

virtual void	enforceBoundary (double *, int)
	Enforces boundary conditions for controls (default implementation does nothing).

virtual void	evaluate (const double t, const std::vector< double > &coeff, int carrier_freq_id, double Blt1, double Blt2)=0
	Evaluates the control basis at a given time using the provided coefficients.

virtual void	derivative (const double t, const std::vector< double > &coeff, double *coeff_diff, const double valbar1, const double valbar2, int carrier_freq_id)=0
	Evaluates the derivative of the control basis at a given time.

Protected Attributes
int	nparams
	Number of parameters that define the control pulse.

double	tstart
	Start time of the interval where the control basis is applied.

double	tstop
	Stop time of the interval where the control basis is applied.

int	skip
	Offset to the starting location for this basis inside the global control vector.

ControlType	controltype
	Type of control parameterization.

bool	enforceZeroBoundary
	Flag to enforce zero boundary conditions for control pulses.

Detailed Description

Abstract base class for control parameterizations.

The ControlBasis class defines the interface for various parameterizations of the control pulse envelopes, which are multiplied by carrier waves in the Oscillator class. Derived classes implement specific control parameterizations, such as the most standard parameterization via 2nd order Bsplines. Specific control parameterizations are initialized in the constructor of the oscillator.

Main functionality:

evaluate for computing the outer envelop shape of the pulses at given time t
derivative for updating the local gradient of the evaluate function
enforceBoundary for setting pulse shape envelopes to zero at initial and final time

Constructor & Destructor Documentation

◆ ControlBasis() [1/2]

ControlBasis::ControlBasis ( )

◆ ControlBasis() [2/2]

ControlBasis::ControlBasis	(	int	nparams_,
		double	tstart,
		double	tstop,
		bool	enforceZeroBoundary
	)

Constructor with parameters.

Parameters

nparams_	Number of parameters defining the controls.
tstart	Start time of the interval.
tstop	Stop time of the interval.
enforceZeroBoundary	Flag to enforce zero boundary conditions. If true, ensures that the controls start and end at zero.

◆ ~ControlBasis()

ControlBasis::~ControlBasis ( )

virtual

Member Function Documentation

◆ computeVariation()

virtual double ControlBasis::computeVariation	(	std::vector< double > &	,
		int
	)

inlinevirtual

Computes the variation of control parameters (default implementation returns 0.0).

Default implementation ignores all input parameters.

Returns: double Variation value.

Reimplemented in BSpline0.

◆ computeVariation_diff()

virtual void ControlBasis::computeVariation_diff	(	double *	,
		std::vector< double > &	,
		double	,
		int
	)

inlinevirtual

Computes the gradient of the variation (default implementation does nothing).

Default implementation ignores all input parameters.

Reimplemented in BSpline0.

◆ derivative()

virtual void ControlBasis::derivative	(	const double	t,
		const std::vector< double > &	coeff,
		double *	coeff_diff,
		const double	valbar1,
		const double	valbar2,
		int	carrier_freq_id
	)

pure virtual

Evaluates the derivative of the control basis at a given time.

Parameters

t	Time at which to evaluate.
coeff	Vector of coefficients.
coeff_diff	Pointer to the derivative coefficients.
valbar1	Multiplier for the real derivative term.
valbar2	Multiplier for the imaginary derivative term.
carrier_freq_id	ID of the carrier frequency.

Implemented in BSpline2nd, BSpline2ndAmplitude, and BSpline0.

◆ enforceBoundary()

virtual void ControlBasis::enforceBoundary	(	double *	,
		int
	)

inlinevirtual

Enforces boundary conditions for controls (default implementation does nothing).

For some control parameterizations, this can be used to enforce that the controls start and end at zero. For example, the 2nd order Bspline parameterization will overwrite the parameters of the first and last two splines by zero, ensuring that the resulting control pulses start and end at zero.

Default implementation ignores all input parameters.

Reimplemented in BSpline2nd, BSpline2ndAmplitude, and BSpline0.

◆ evaluate()

virtual void ControlBasis::evaluate	(	const double	t,
		const std::vector< double > &	coeff,
		int	carrier_freq_id,
		double *	Blt1,
		double *	Blt2
	)

pure virtual

Evaluates the control basis at a given time using the provided coefficients.

Parameters

[in]	t	Time at which to evaluate.
[in]	coeff	Vector of parameters (coefficients of the basis parameterization).
[in]	carrier_freq_id	ID of the carrier frequency, provided by the oscillator.
[out]	Blt1	Pointer to store the real part of the control parameterization.
[out]	Blt2	Pointer to store the imaginary part of the control parameterization.

Implemented in BSpline2nd, BSpline2ndAmplitude, and BSpline0.

◆ getNparams()

int ControlBasis::getNparams ( )

inline

Retrieves the number of parameters defining the controls.

Returns: int Number of parameters.

◆ getNSplines()

virtual int ControlBasis::getNSplines ( )

inlinevirtual

Retrieves the number of splines (default implementation returns 0).

Returns: int Number of splines.

Reimplemented in BSpline2nd, BSpline2ndAmplitude, and BSpline0.

◆ getSkip()

int ControlBasis::getSkip ( )

inline

Retrieves the offset for the starting location in the global control vector.

Returns: int Offset value.

◆ getTstart()

double ControlBasis::getTstart ( )

inline

Retrieves the start time of the interval.

Returns: double Start time.

◆ getTstop()

double ControlBasis::getTstop ( )

inline

Retrieves the stop time of the interval.

Returns: double Stop time.

◆ getType()

ControlType ControlBasis::getType ( )

inline

Retrieves the type of control parameterization.

Returns: ControlType Type of control.

◆ setSkip()

void ControlBasis::setSkip ( int skip_ )

inline

Sets the offset for the starting location in the global control vector.

Parameters

skip_ Offset value.

Member Data Documentation

◆ controltype

ControlType ControlBasis::controltype

protected

Type of control parameterization.

◆ enforceZeroBoundary

bool ControlBasis::enforceZeroBoundary

protected

Flag to enforce zero boundary conditions for control pulses.

◆ nparams

int ControlBasis::nparams

protected

Number of parameters that define the control pulse.

◆ skip

int ControlBasis::skip

protected

Offset to the starting location for this basis inside the global control vector.

◆ tstart

double ControlBasis::tstart

protected

Start time of the interval where the control basis is applied.

◆ tstop

double ControlBasis::tstop

protected

Stop time of the interval where the control basis is applied.

The documentation for this class was generated from the following files:

/home/runner/work/quandary/quandary/include/controlbasis.hpp
/home/runner/work/quandary/quandary/src/controlbasis.cpp
